Product Description

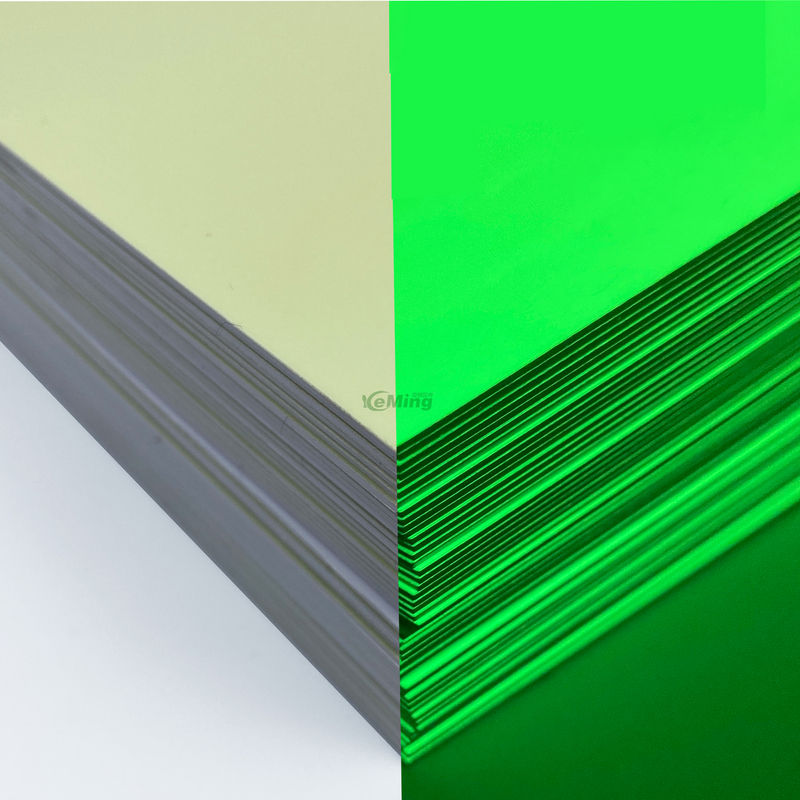

Photoluminescent rigid PVC sheet is also called as non-electric glow in the dark sheet or panel.
It is made from photoluminescent pigment and specialized coating composite material that is thermally welded together.It can be cut into all of shapes and pattern applied to clean and dry surface.
| Material: | Rigid PVC Sheet |
| Total Thickness: | 1.1mm |
| Size: | 1200mm*1000mm,600mm*500mm/customize |
| Emitting Color: | yellow-green |
| Luminance: | >120mcd/m2 after 10 minutes and >15mcd/m2 after 60 minutes |
| MOQ: | no requirement |
| Certificates: | ISO 9001 and ISO14001 |
| Free Samples: | yes |
Notes:
1) The standard dimension of Yeming`s photoluminescent rigid PVC sheet is 1.2m*1m,we also can offer the cutting service according to the customers` specific requirements.
2) Yeming also can offer backing adhesive service according to the customers` specific requirement.
| Warm Prompt | |
We don`t suggest to use the photoluminescent rigid PVC sheet outside,because the rain,snow,big temperature difference and others have heavy influence on its service life. |
Related Products
Besides to the photoluminescent rigid PVC sheet Ym-PS-15,Hangzhou Yeming also has the following four photoluminescent rigid PVC sheets.
| Model | Thickness | Luminance(mcd/m2) | Max Size | Picture | |
| 10 minutes | 60 minutes | ||||
| Ym-PS-30 | 1.1mm | 218 | 30 | 1200mm x 1000mm |  |
| Ym-PS-40 | 1.2mm | 306 | 40 | ||
| Ym-PS-70 | 1.6mm | 510 | 70 | ||
| Ym-PS-90 | 1.6mm | 709 | 90 | ||
| Remark: | The above luminosity data were tested according to DIN67510 standard Part l-charge 1000lux D65 light for 5 minutes. | ||||
Features
Hangzhou Yeming's photoluminescent rigid PVC sheets have the following features:
✅Yeming`s photoluminescent rigid PVC sheet can resist flame to some degree;
✅Able to resist salty solution and detergent (can be washed with detergent);
✅Siutable for the temperature range -20ºC to 65ºC;
✅With good physics and mechanical properties;
Applications
Yeming`s photoluminescent rigid PVC sheets can be cutted into different shape and different dimension,they are suitable for being used for manufacturing fire safety markings through silk-screen techniques.
