Production Description

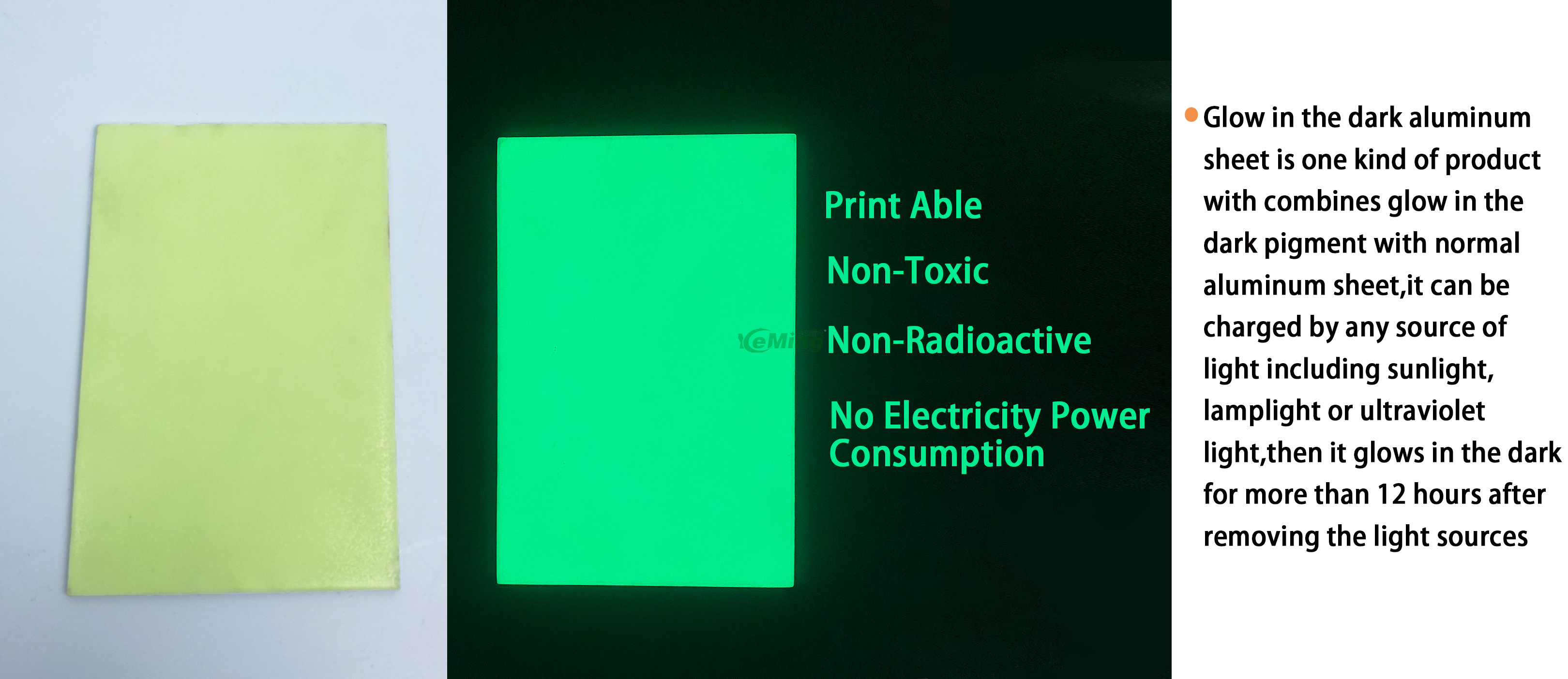

Photoluminescent aluminum sheet is a luminous product produced on the basis of high quality photoluminescent pigment, which is manufactured by ourselves Hangzhou Yeming Company.
It is a luminous sheet made of aluminum sheet, nont-toxic and harmless, doesn't contain any radioactive elements, and is characterized by quick lights absorption(5-10 minutes), high brightness,long glowing time and service life.
| Material: | Aluminum |
| Material Thickness: | 0.5mm,0.7mm,1.0mm/customize |
| Size: | 1200mm*1000mm/600mm*500mm/customize |
| Surface: | Shining surface/matte surface/no protection varnish on the top |
| Emitting Colour: | yellow-green/blue-green |
| Luminance: | 500mcd/m2 after 10 minutes and 70mcd/m2 after 60 minutes |
| Afterglow Time: | >12 hours |
| MOQ: | 2 square meters |
| Certificates: | ISO 9001 and ISO14001 |
| Free Samples: | Available |
Notes:
1) The standard dimension of Yeming`s photoluminescent aluminum sheets are 1200mm*1000mm,we also can offer the cutting service according to the customers` specific requirements;
2) Yeming can offer backing adhesive service according to the customers` specific requirements;
3) Yeming can also make the photoluminescent aluminum sheets according to the customers` specific luminosity requirements.
Related Products
Besides to the photoluminescent aluminum sheet Ym-AS-40,Hangzhou Yeming also has the following three photoluminescent aluminum sheets.
Model | Material | Luminance(mcd/m2) | Max Size | Picture | |
| 10 minutes | 60 minutes | ||||
| Ym-AS-40 | aluminum | 300 | 40 | 1200mm |
|
| Ym-AS-70 | 500 | 70 | |||
| Ym-AS-90 | 700 | 90 | |||
| Remark: | 1.The above luminosity data were tested according to DIN67510 standard Part l-charge 1000lux D65 light for 5 minutes. | ||||
2.The photoluminescent aluminum sheets in other specific luminosity like PSPA Class B,Class C, Class D,etc. are also available in Hangzhou Yeming Company. | |||||
Features
Hangzhou Yeming's photoluminescent aluminum sheets have the following features:
✅Can resist flame to some degree;
✅Able to resist salty solution and detergent (can be washed with detergent);
✅Siutable for the temperature range -35ºC to 70ºC;
✅ With good physics and mechanical properties;
✅Can be used outside,because there is a layer of strong protection varnish on its surface;
Application

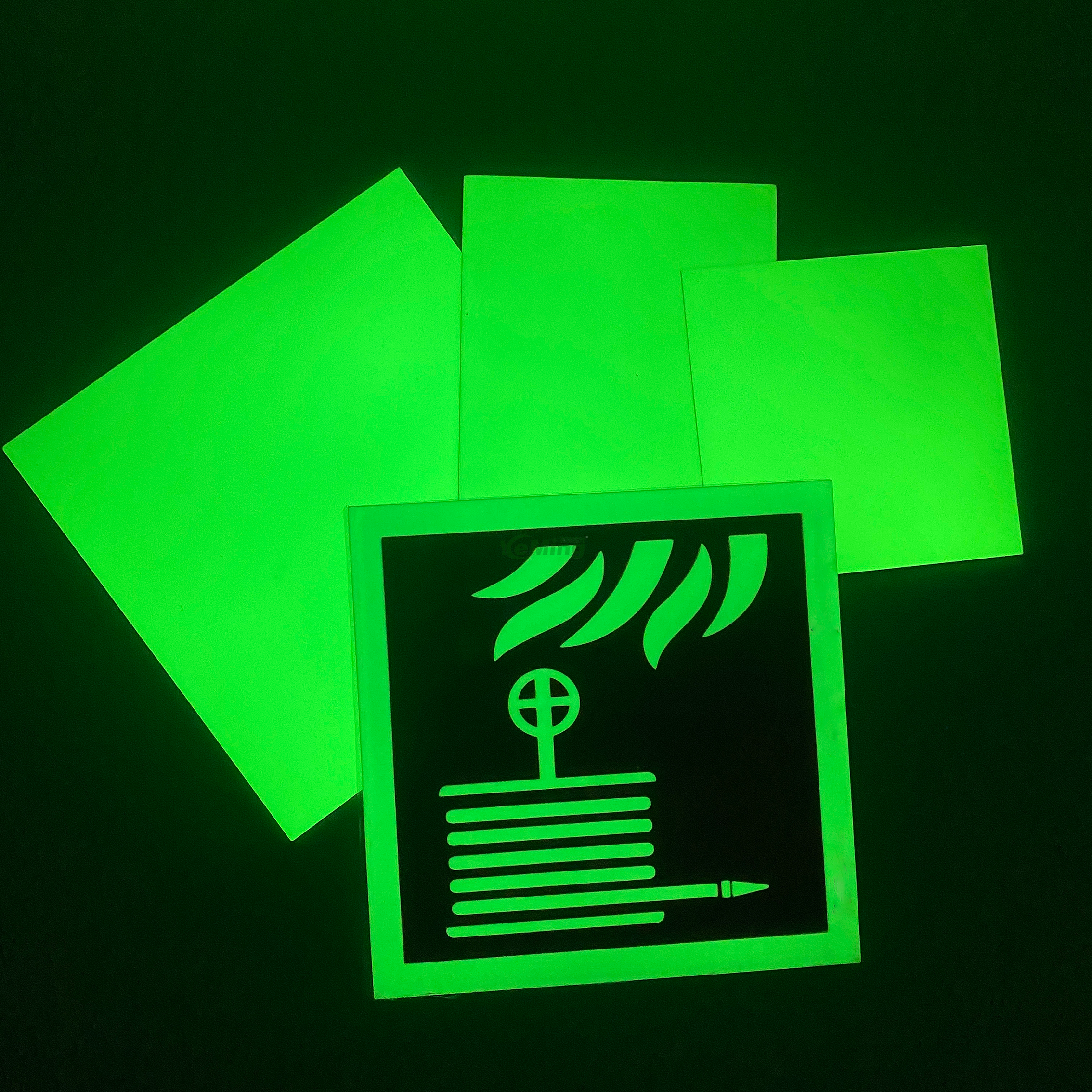

Hangzhou Yeming`s photoluminescent aluminum sheets can be cutted into different shape and different dimension,they are mainly used for making fire safety markings through silk-screen techniques or cutted into Low Location Lighting stripes.
